PNEUMATIC BALL VALVE

Product Description
1) Size: DN15-DN250
2) Pressure: 16-40Mpa
3) Temperature Range: -20~232oC~300oC
4) Suitable medium: Water, Oil, gas, and some Corrosive liquid
5)Flanged end& Blow-out proof stem& Fire safe construction& Anti static device
6)Ball Type: Floating Ball
7)Port Type: Standard bore
8)Material: WCB, WC6, WC9, LCB, CF8, CF3, CF8M, CF3M, CN7M, Monel and Hast. etc.
9)Ball and Stem: SS304, SS316, SS304L, SS316L, SS410, SS416. etc.
10)Valve Seat: PTFE / RPTFE / PCTFE / PEEK / DEVLON. etc.
11)Operation: Manual or Gear Box

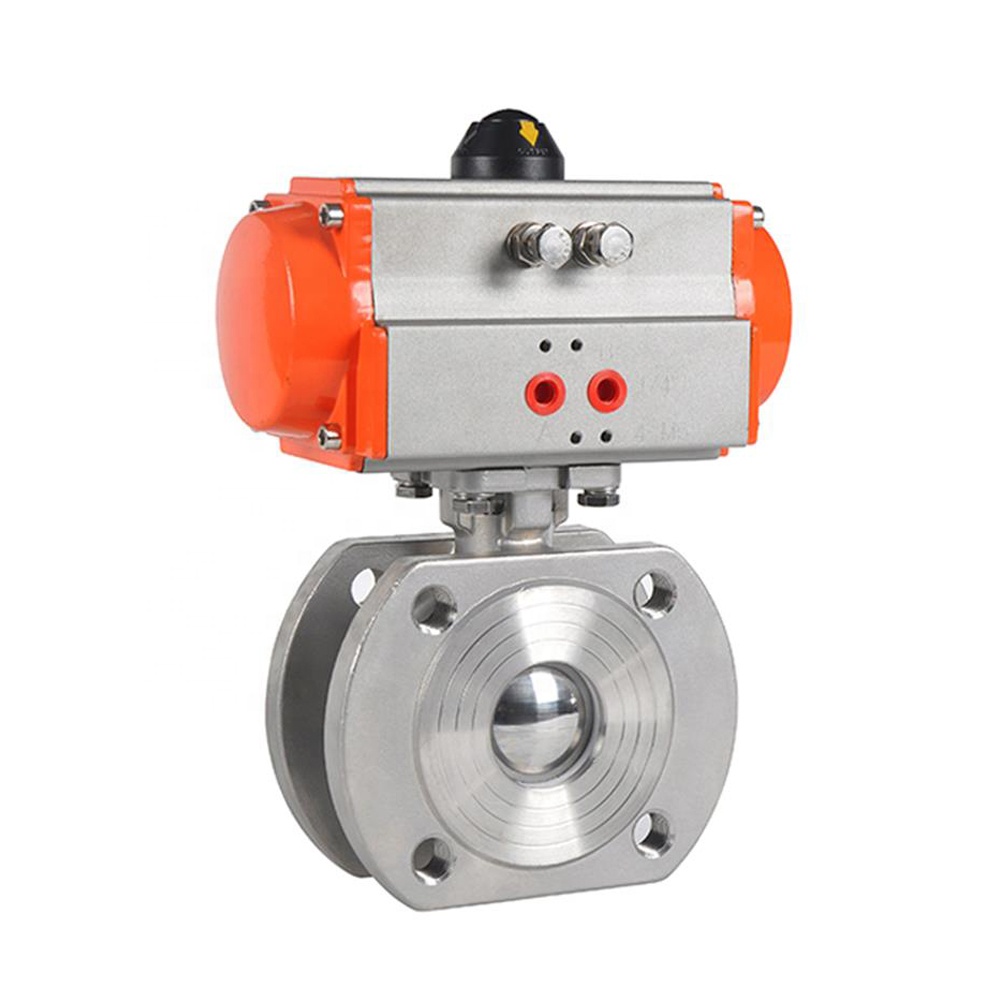

Stainless Steel Wafer Ball Valves (Q71F)
Size: 1/2" -8" (DN15~DN200)
Pressure: Class150LB-600LB (PN16~PN100)
Material: WCB, LCB, CF8, CF8M, CF3, CF3M, A105, LF2, F304, F316, F304L, F316L
Design & Manufacture Std.: ASTM/ASME/ANSI A P I American-Standard608, ASME B16.34, DIN 3357
End Connection Std.: ASME B16.5, JISB2212/JISB2214, DIN2543-2544
Test Standard: ASTM/ASME/ANSI A P I American-Standard598, ASTM/ASME/ANSI A P I American-Standard 6D, DIN3230, JIS B2003
Structure Type: One-piece(1/2 -5 ), Two-piece (6 -8 ), Full bore
Operated way: Lever, Pneumatic, Electric
