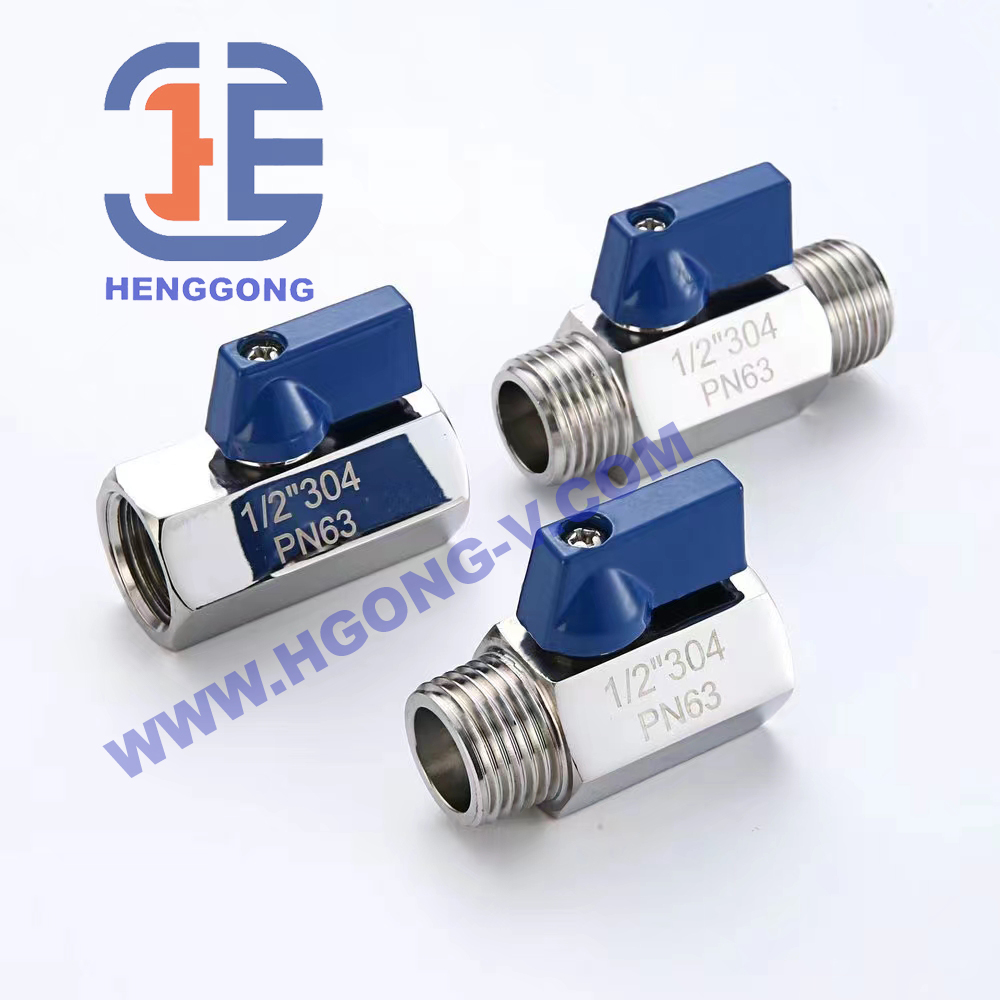

Mini ball valve

parameter
Model ： Q11F
Unit ： 1set
Material ： 304/WCB/Customization
Brand ： HENGGONG
Immediate booking
13676761845
Prev: DIN non rise stem cast iron GGG50 gate valve
Next: API DIN/JIS 316 304 10K Pneumatic Hydraulic Electirc Flange Industrial Stainless Steel Knife Gate Valve for Flow Control
Product details

Thread ball valve mini ball valve

Bolted bonnet,Two-piece Body,Floating Ball

Full or Reduced bore,Blowout Proof Stem

Fire safe and Anti static

Stainless steel ball

ASTM A216 WCB,A351 CF8,A351 CF8M,

A351 CF3,A351 CF3M,A351 CN7M

Standards compliance

Design and Manufacture: API 608,API 6D,BS5351

Face to face(end to end): ANSI B16.10,API 6D

Flanged connection:2"~24" to ANSI B16.5

Fire-safe: API 607,API 6FA

Butt welded end: ANSI B16.25

Test and inspection: API 598,API 6D

Major parts materials

MaterialSS201, SS304, SS316
Size1/4" -4" (DN8-DN100)
StandardDIN,ANSI,JIS
Pressure1000psi, PN16
TechnologyInvestment casting.
PackingPack in cartons then put into plywood
Suitable mediumwater, oil, air and some corrosive liquid etc(WOG)
Connection EndsThreaded, Butt welded, Socket welded
Temperature Range-20-300ºC
Lockingoption
Capacity to produce100, 000.00 PCS/week
Delivery time30-40 days after received the deposit
Brandhenggong
OEMAccepted
