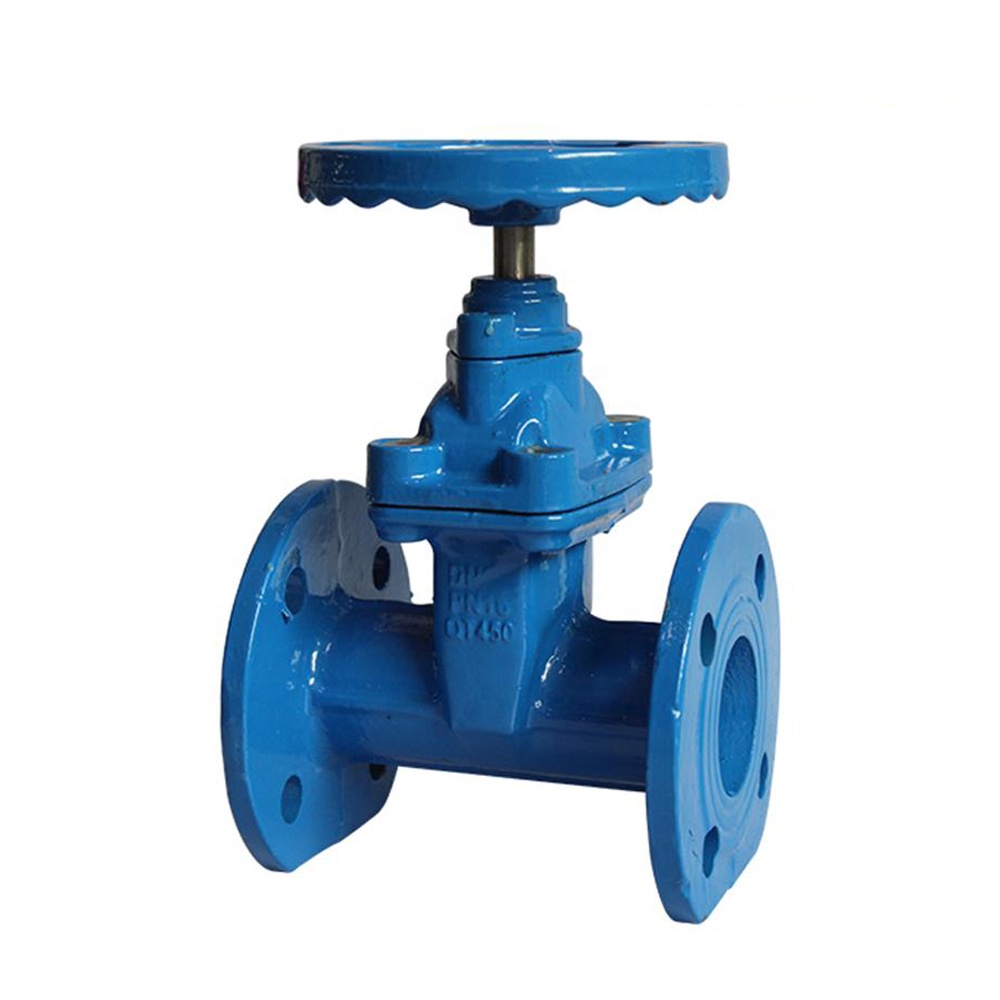

DIN non rise stem cast iron GGG50 gate valve

parameter
Model ： Z45X
Unit ： 1set
Material ： 304/WCB/GGG50/Customization
Brand ： HENGGONG
Immediate booking
13676761845
Prev: GG25 cast iron Ductile iron rubber seat gate valve
Next: Mini ball valve
Product details

Product Description
DIN NON Rising Stem Gate Valves
OS&Y, Rising stem, Flexible Wedge
Bolted Bonnet, Threaded or welded seat ring
CS-G25, ASTM A216 WCB, A217 WC6, A351 CF8, A351 CF8M,
A351 CF3, A351 CF3M, A351 CN7M, A352 LCB
Standards compliance
Design Standard: DIN3352
Face to Face:DIN3202
Flange Ends: DIN2543-2547
Test & Inspection: DIN3230
Size Range: DN50~DN600
Pressure Ratings: PN16~PN64

Working Pressure

PN10

PN16

Shell Pressure

1.5MPa

2.4MPa

Seat Pressure

1.1MPa

1.76MPa

5.   BS1563 30" Flanged Gate Valves Dimensions

DN

50

65

80

100

125

150

200

250

300

350

400

500

600

L

178

190

203

229

254

267

292

330

356

381

406

457

508

H

265

297

313

359

451

451

544

621

730

880

990

1120

1370

D(PN10)

165

185

200

220

250

285

340

395

445

505

565

670

780

D(PN16)

165

185

200

220

250

285

340

405

460

520

580

715

840

C

178

178

203

254

305

356

405

457

-

-

-

-

-
