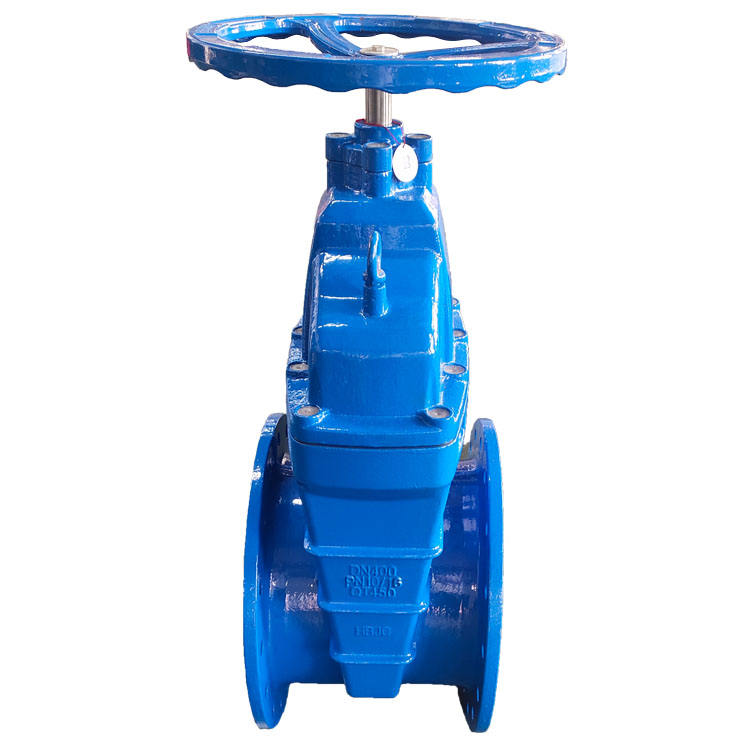

GG25 cast iron Ductile iron rubber seat gate valve

parameter
Model ： Z45X
Unit ： 1set
Material ： 304/WCB/GGG50/Customization
Brand ： HENGGONG
Immediate booking
13676761845
Prev: A105 forged gate valve
Next: DIN non rise stem cast iron GGG50 gate valve
Product details

Product Description
DIN NON Rising Stem Gate Valves
OS&Y, Rising stem, Flexible Wedge
Bolted Bonnet, Threaded or welded seat ring
CS-G25, ASTM A216 WCB, A217 WC6, A351 CF8, A351 CF8M,
A351 CF3, A351 CF3M, A351 CN7M, A352 LCB
Standards compliance
Design Standard: DIN3352
Face to Face:DIN3202
Flange Ends: DIN2543-2547
Test & Inspection: DIN3230
Size Range: DN50~DN600
Pressure Ratings: PN16~PN64

NO

Part name

Material

NO

Part name

Material

1

Body

A216-WCB

12

Gland

A182-F6a

2

Disc

A216-WCB

13

Gland flange

A216-WCB

3

Seat

A105

14

Bolt

A193-B7

4

Stem

A105

15

Nut

A194-2H

5

Bolt

A193-B7

16

Nozzle

Copper

6

Nut

A194-2H

17

Bearing

Assembly

7

Gasket

Graphite

18

Locking nut

AISI 1035

8

Bonnet

A216-WCB

19

Stem nut

Copper alloy

9

Back seat

A182-F6a

20

Handwheel

Ductile iron

10

Packing

Graphite

21

Anchor nut

AISI 1035

11

Pin

A276-410




Dimension:

Pressure

(Mpa)

PN 1.6 Mpa

Size

50

65

80

100

125

150

200

250

300

350

400

450

500

600

L

150

170

180

190

200

210

230

250

270

290

310

330

350

390

H

305

354

402

437

496

541

699

815

914

1189

1350

1680

1907

2050

W

200

200

250

250

300

350

400

400

450

450

500

500

600

600

Weight(kg)

15

17

23

43

51

68

105

176

285

356

568

702

895

1045
