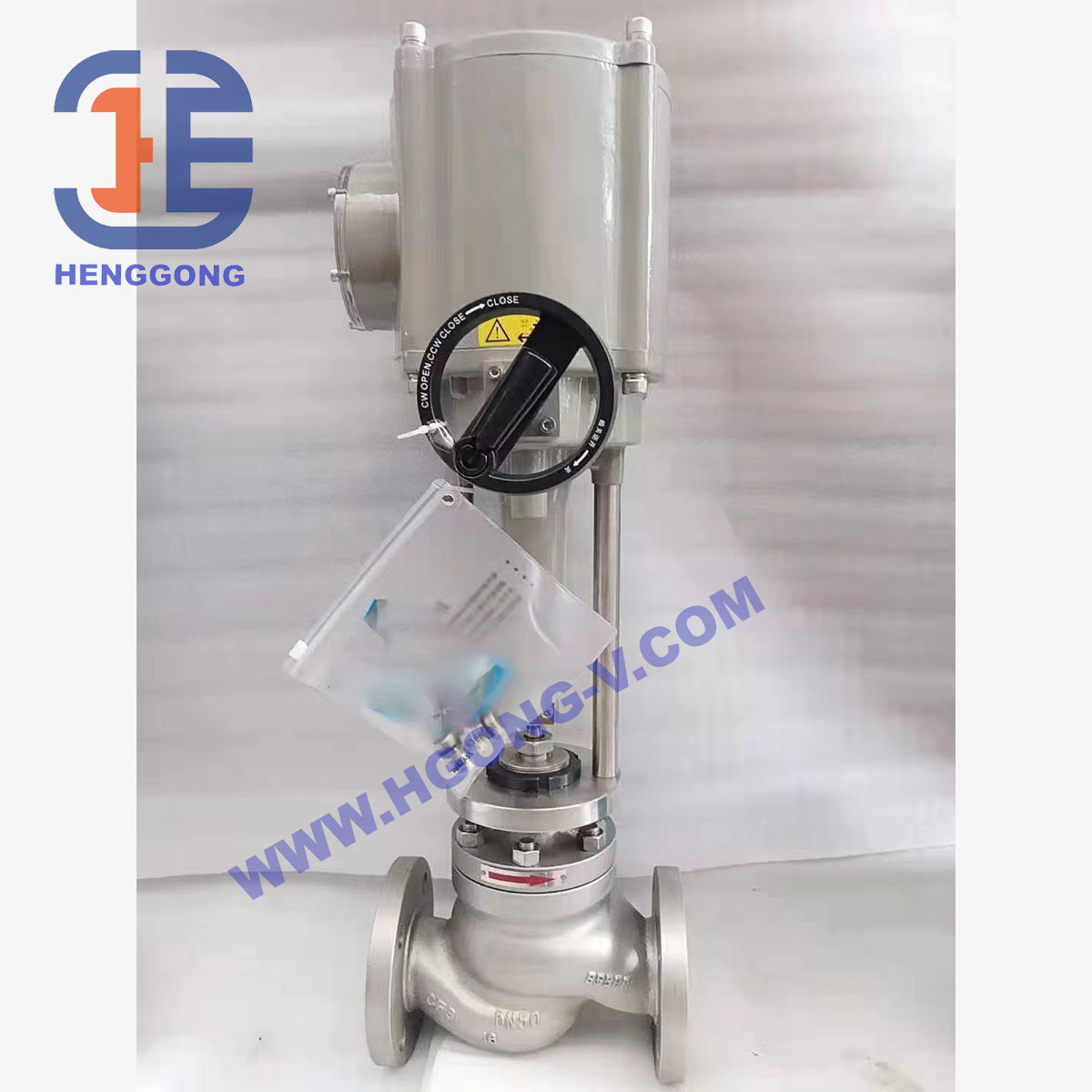

ANSI/DIN Plastic Water Valve Connector Oil Pneumatic Position Stainless Steel Control Regulate Valve
Product Description
CLASS 150~1500 regulate valve
Threaded or welded seat ring
ASTM A216 WCB, A217 Wc6, A351 CF8, A351 CF8M,
A351 CF3, A351 CF3M, A351 CN7M
Standards compliance:
Design and Manufacture: ANSI B16.34, ASTM/ASME/ANSI A P I American-Standard 6D, BS1868
Face to face(end to end): ANSIB16.10, ASTM/ASME/ANSI A P I American-Standard 6D
Flanged connection: 2"~24" to ANSI B16.5
Butt welded end: ANSI B16.25
Test and inspection: ASTM/ASME/ANSI A P I American-Standard 598, ASTM/ASME/ANSI A P I American-Standard 6D
Materials list | ||
NO. | Part name | Material |
12 | Disc nut | Carbon steel/stainless steel |
11 | Washer | Carbon steel/stainless steel |
10 | Hinge pin | Carbon steel/stainless steel |
09 | Seat ring | CS+SS/SS/SS+STL(see body materials) |
08 | Disn | CS+SS/SS/SS+STL(see body materials) |
